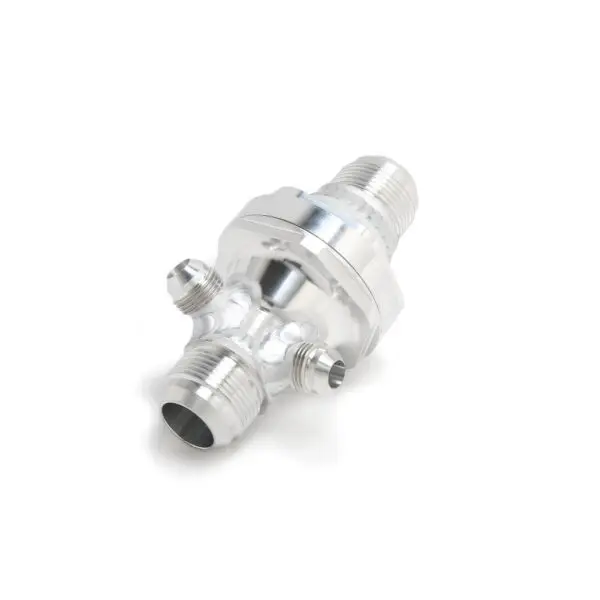

Inline Thermostat

$179.95

Fabricated Product

See the green banner at the top of the page for current ETA. If needed, inquire for exact date AFTER you have placed your order. The job date is also the ship date.

Inlet/ Cold Side
Outlet/ Hot Side
Thermostat
Water Bypass Port

This Option is Added to the Hot Side

Accessory Return

This Option is Added to the Hot Side

Honda Fan Switch Bung

This Option is added to the Cold Side. Unfortunately there is no room natively… so I must repeat what I do to the hot side, to the cold side. Which is machine the end off and weld a longer inlet that will accommodate the sensor and your connection type.

Category:
Inline Thermostat

Description

Looking to add a thermostat to your electric water pump? Have you purchased a water neck flange or assembly that no longer incorporates a thermostat?

A thermostat is a CRITICAL component of the cooling system and its operation; without one… it may be hard to get an engine up to operating temp within a reasonable time or even worse, keeping the coolant in the radiator long enough to remove enough heat before it goes back into the engine where temps continue to climb, and eventually lead to overheating!

Coolant Bypass – Coolant Bypass is welded to the “Hot Side” of the thermostat housing. Bypass is not an option; it is the circuit that brings the gradually warming water that is circulating in the block and cylinder head(s) past the thermostat (when it is closed) and eventually tells it when to open.

Accessory Return – Accessory Return is also welded to the “Hot Side” of the thermostat housing. Accessory is an option; it provides a second port for connecting a heater core or completing a loop for a water-cooled accessory.

NOTE: If you are interested in a specific hose connection type/ combo not listed, please email us at sales@tractuff.com.
