TracTuff 2JZ Swirl Pot

$514.95

Fabricated Product

Please refer to the green banner at the top of the page for my current ETA. If needed, you can request the exact date after you have placed your order. I usually ship the same day as the job date.

Deck Height
Billet Flange Base

OEM = Working Water Bypass to Water Pump / OEM Blocked = Water Bypass Tube to Water Pump Held but Blocked / None = No Water Bypass Feature

Tank Diameter
Tank Wall Thickness

.120″ Wall Only Available in 3.00″ Diameter

Lid Type
Connection Type

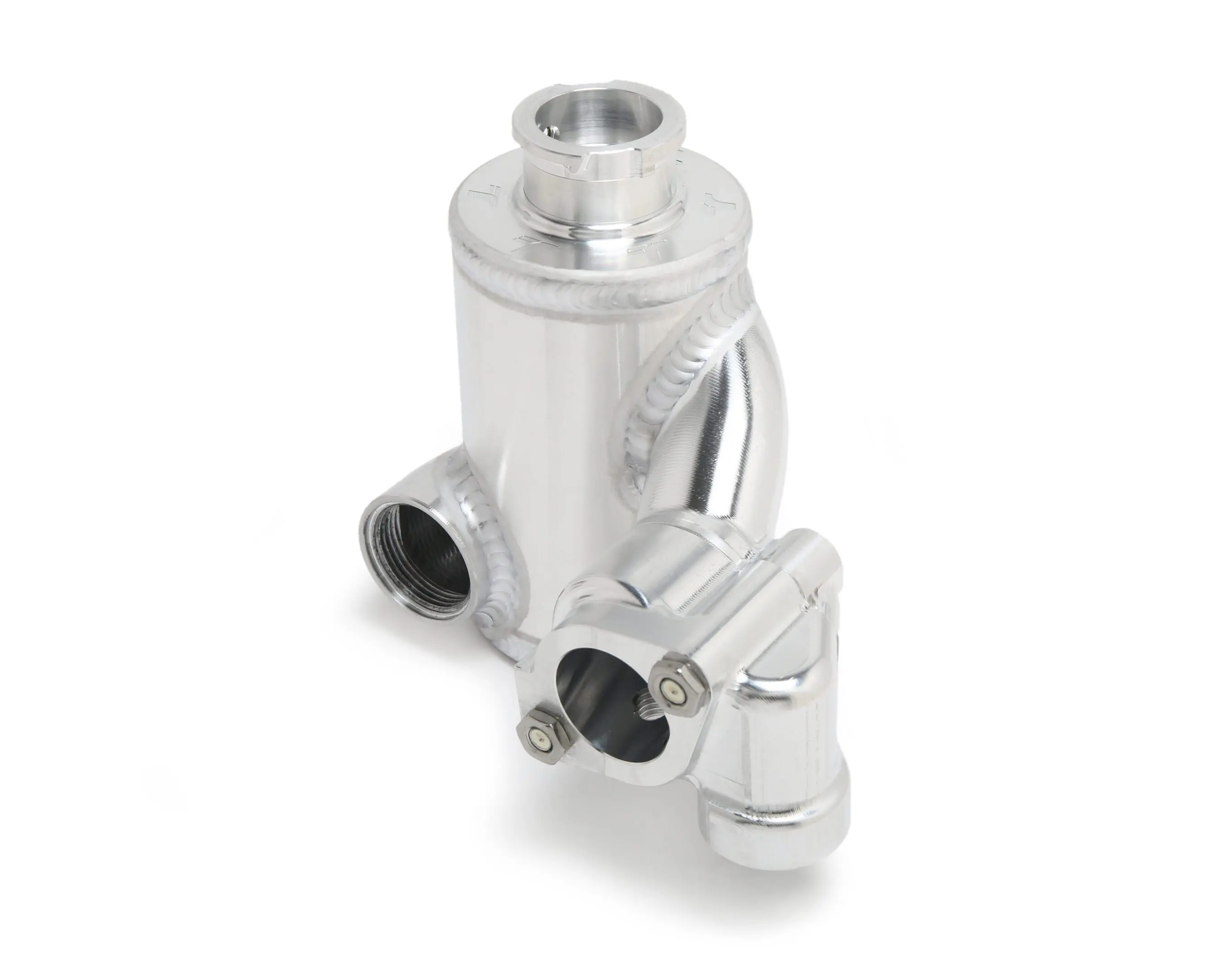

The -16 Female ORB – Billet Outlet Option (Shown) has very little offset and when pointed 3 o’clock will not clear a timing cover. I recommend any other option as I have control over how much offset I notch the tube that becomes the outlet.

Outlet Position
Tank Accessory Bung

Accessory Bung is NOT the same as Overflow Port. The Overflow Port is ALWAYS Included.

Category:

Description

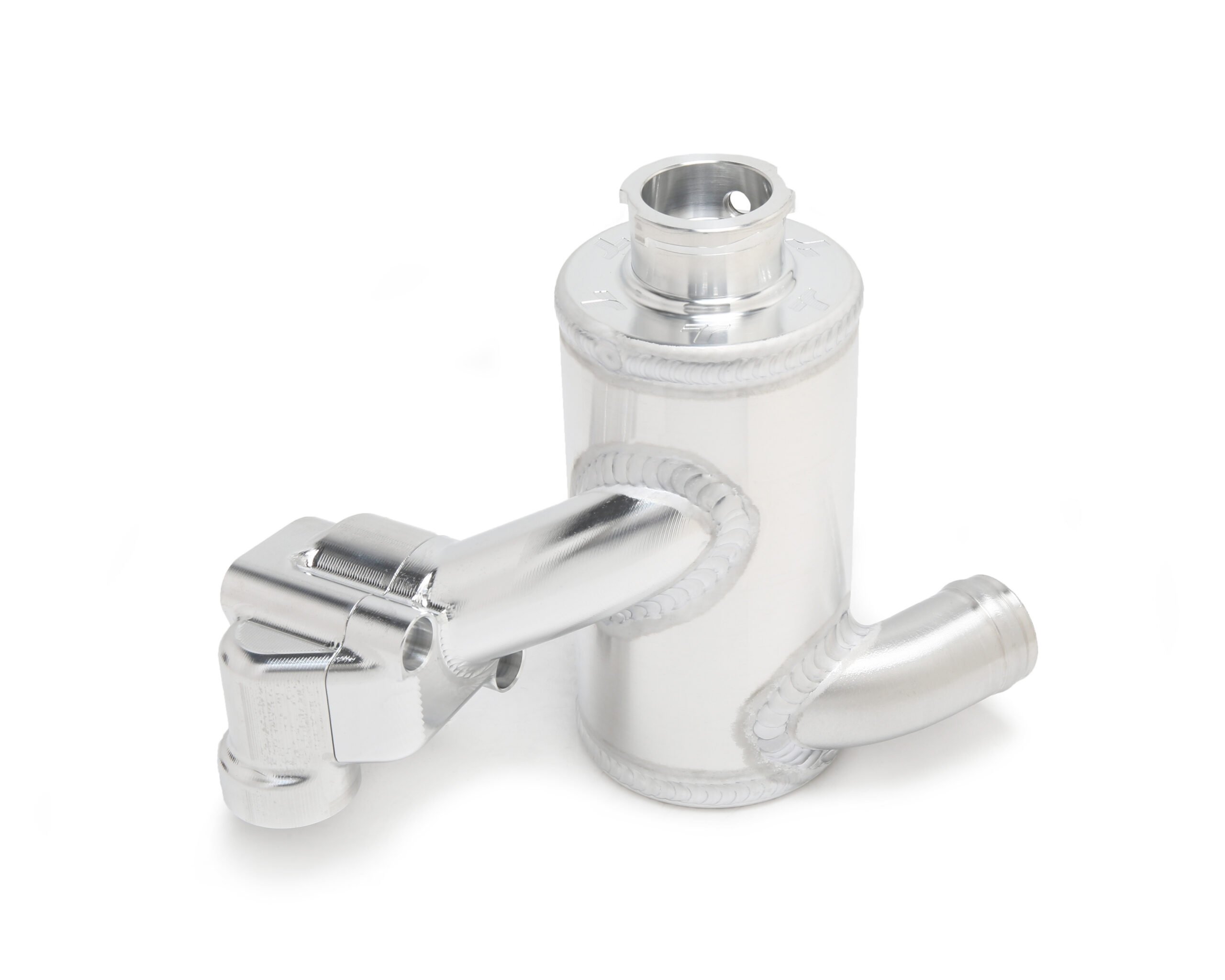

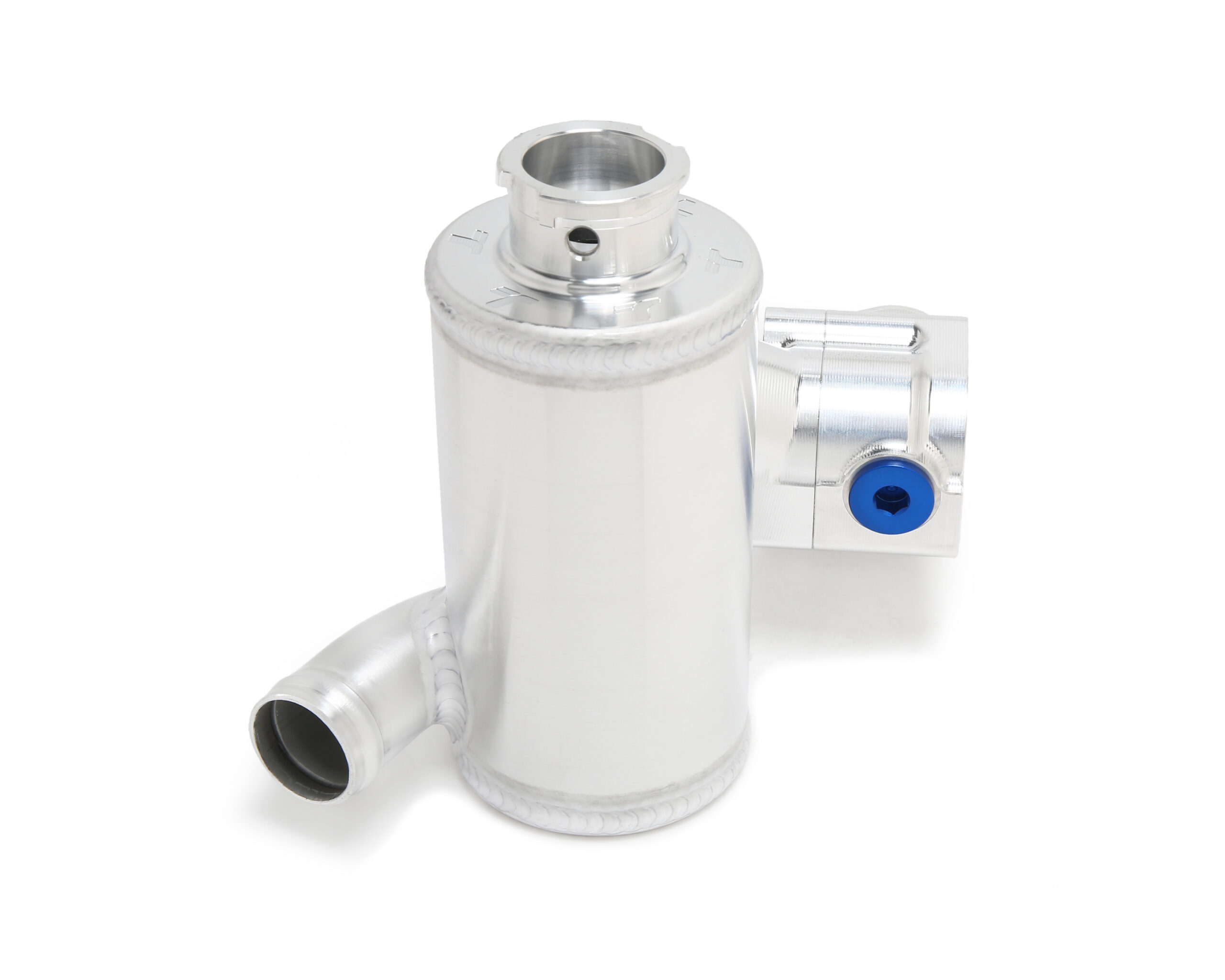

I am so excited to be releasing this badass upper water neck for the 2JZ-GTE market! Totally different from everything you’ve seen before… a purpose-built billet swirl pot flange that eliminates the notched, thin-walled intermediate tubing that usually connects my billet flanges to the swirl pot body. This lets the swirl pot entry sit higher than the cylinder head exit.

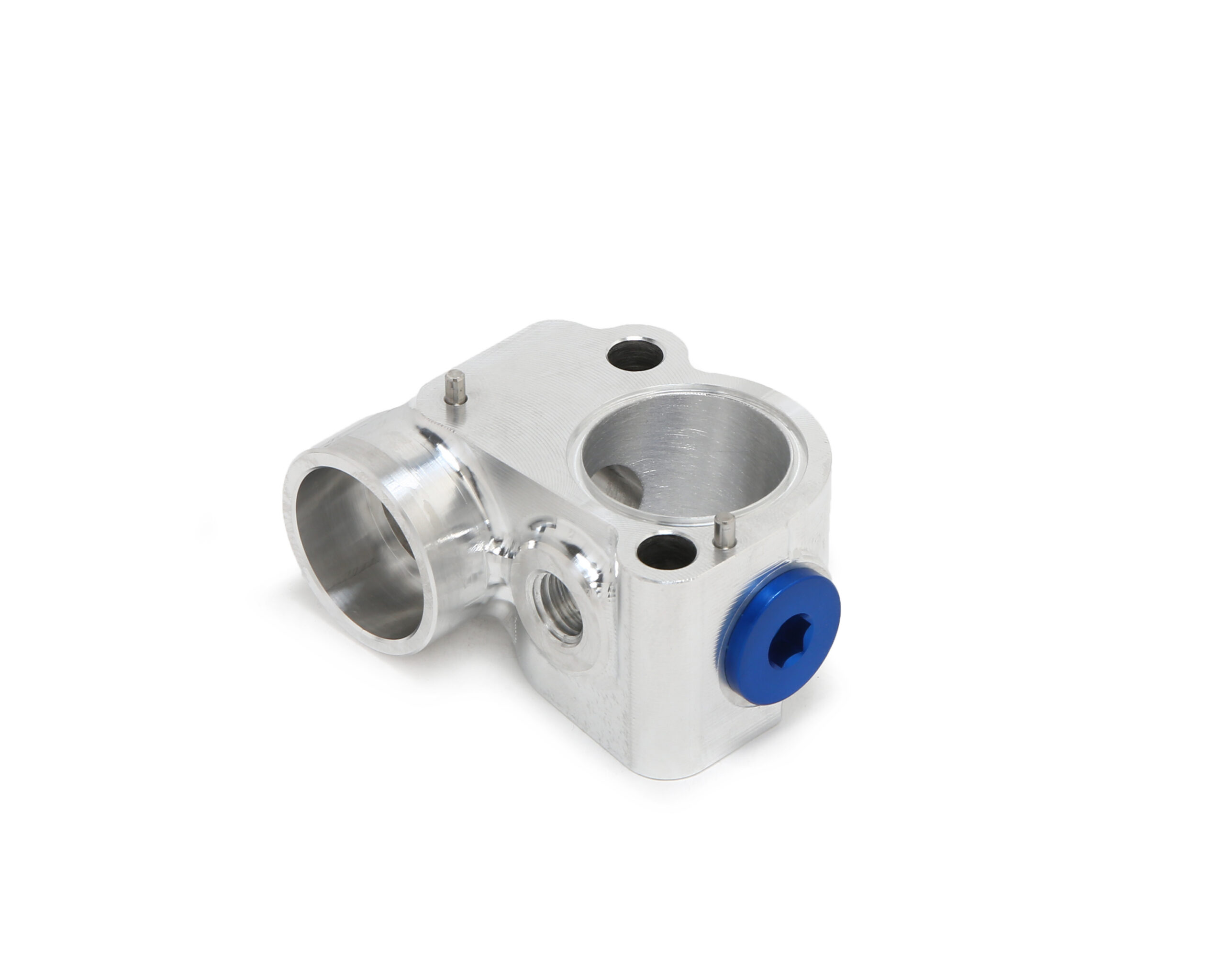

The billet flange portion of this swirl pot is a 2-piece design that incorporates your choice of base: one that keeps the original water bypass feature, one with an incomplete water bypass feature (blocked) but still holds the water bypass tube that is sandwiched between the flange and pump, or a third option (not shown) that has no means of holding a water bypass tube, which is intended to be used with an electric water pump.

The water bypass port is modeled and machined like the factory 2JZ-GTE water neck, so you will need to run the appropriate tube to connect to the water pump, just as you would with a 2JZ-GTE water neck. All bases have a single relocated M12 x 1.5 OEM temp sensor port, and the first two mentioned above have a capped hole covering a machined passage that starts the internal water bypass passage. The passage is terminated with an -8 ORB thread and cap, which sits behind the timing belt cover and cannot be used.

  • 6 Second 1/4 Mile Tested – Currently on White Rice Jr.
  • Compatible with Virtually All Turbo Setups
  • Direct Bolt-On – No Serious Modifications
  • M12 x 1.5 OEM Temperature Sensor Port
  • O-ringed Sealing Surface (No More Paper Gasket)
  • Multiple Outlet Sizes and Clocking

The hardware kit includes M8 socket head bolts, a zinc-plated steel -8 ORB water bypass passage plug (not blue ), a pair of stainless dowels, and a pair of o-rings.

NOTE: The cap bung has a 1/16″ NPT port for overflow connection and uses early-model Toyota radiator caps, such as an 86′-92′ Toyota Supra (PN: 16401-63010). If you are using AN lines, I recommend designing the upper radiator hose with droop/give so the engine’s movement doesn’t push/pull on the radiator and fatigue any parts.

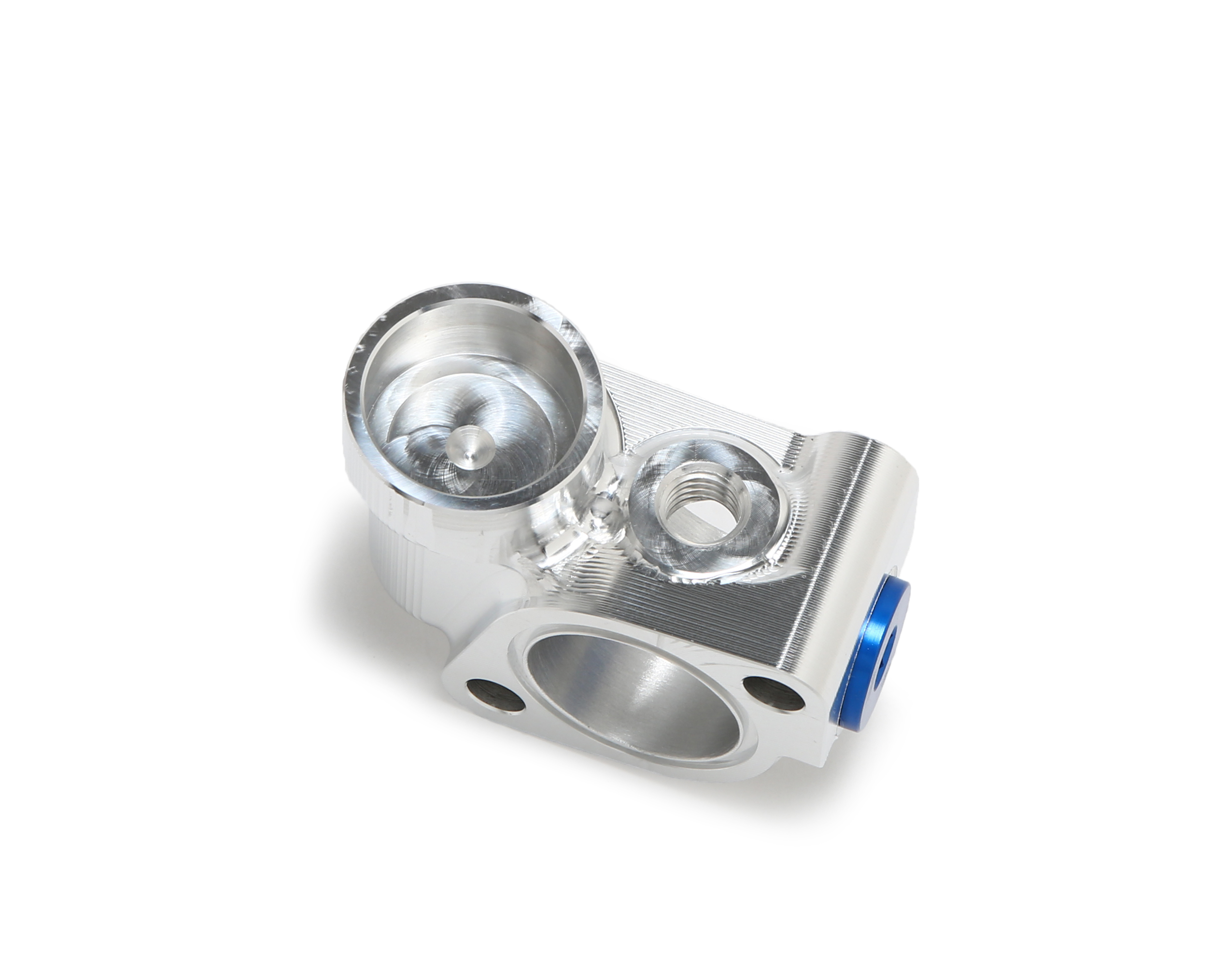

OEM – Water Bypass

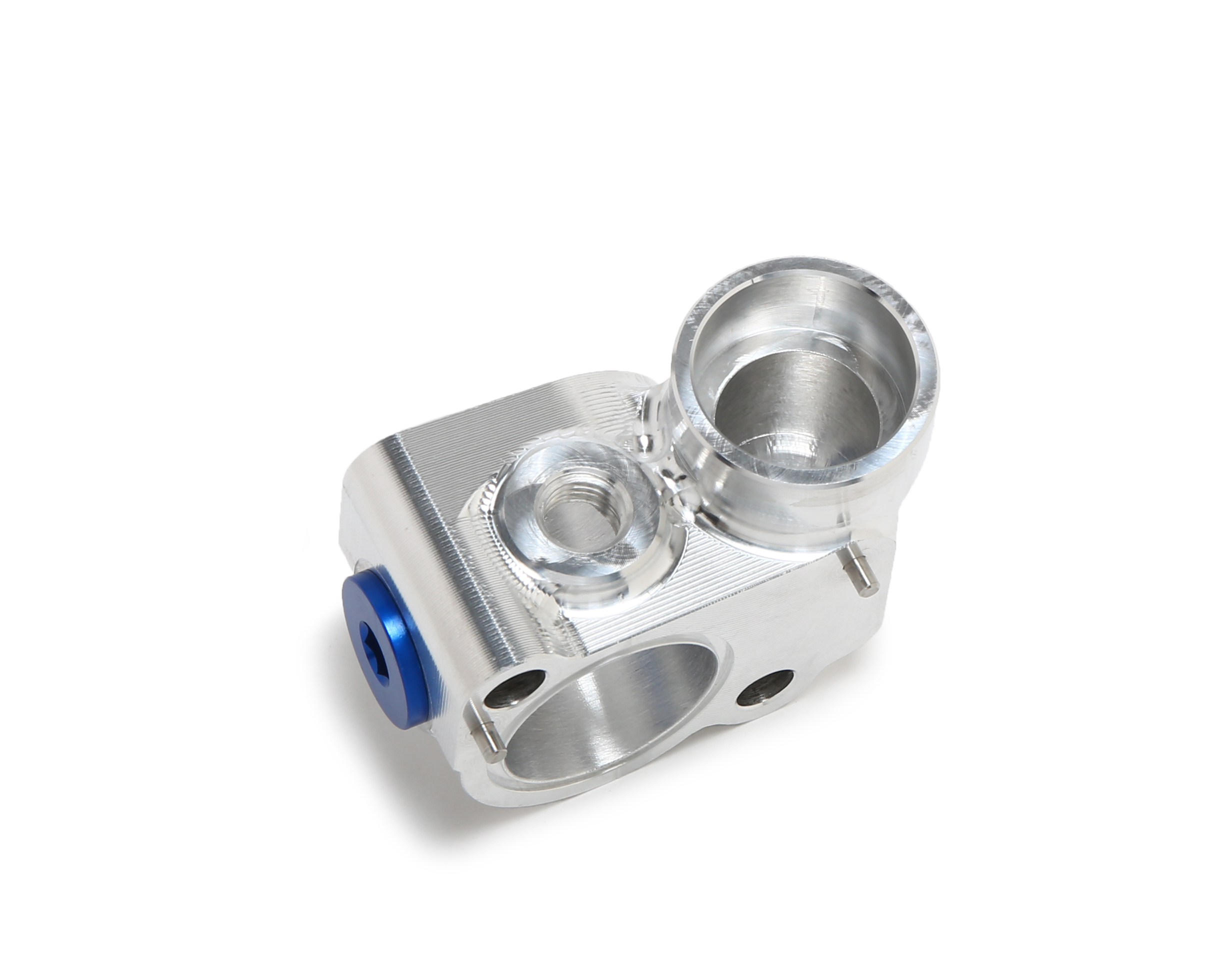

OEM – Water Bypass Blocked



Example of a -6 Male Flare accessory bung at 11 o’clock. 6, 7, 8, 9, 10, and 11 are your only options for any choice that must be submerged in coolant.







Additional information

Weight 3.6 lbs
Dimensions 10 × 8 × 8 in
