TracTuff P13 Fill Pot

Original price was: $269.95.Current price is: $229.46.

Fabricated - Inquire For ETA Before Ordering - If Needed

Fabricated Product

Approximate date advertised in the banner at the top of the page. Job date is also the ship date.

Engine Angle
Connection Type
Outlet Position
Tank Accessory Bung

Accessory Bung is NOT the same as Overflow Port. The Overflow Port is ALWAYS Included.

Categories: ,
Sale!

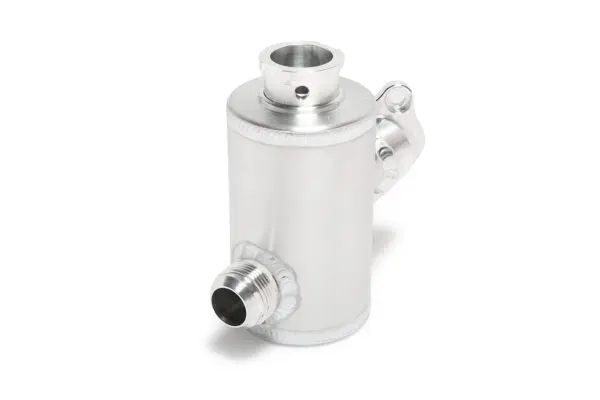

TracTuff P13 Fill Pot
TracTuff P13 Fill Pot - Image 2
TracTuff P13 Fill Pot - Image 3

Description

The fill pot is the mid-range choice for P13 (H22A/ F20B) cylinder head cooling system upgrades! Better than a filler neck but not as good as a swirl pot, but still a great solution for systems that have tucked radiators, a radiator without a cap bung, or for situations where you want a higher fill point to aid in burping the sometimes troublesome cooling system.

The fill pot starts with a beautifully machined 6061-T6 flange that incorporates an angled exit port for a seamless transition to 1.25″ tubing. The backside of the flange has an OEM o-ring groove for a positive seal against the cylinder head. The outlet can be configured for standard hose (1.25″ OD), -16, or -20 male flare.

NOTE: The cap bung has a 1/16″ NPT port for connection to an overflow and uses early model Honda radiator caps, such as an 88′-91′ Civic/ CRX or 90′-93′ Integra. If you are using AN lines, I recommend designing the upper radiator hose so that there is droop/ give… so the engine’s movement does not push/ pull on the radiator and fatigue any parts.

The swirl pot includes two M8 socket head bolts and an o-ring. The cylinder is welded so that it sits level when bolted to an engine with a 10.5° lean back (OEM) or 4.2° lean forward (QSD H2B).

Additional information

Weight 3 lbs
Dimensions 10 × 8 × 8 in
