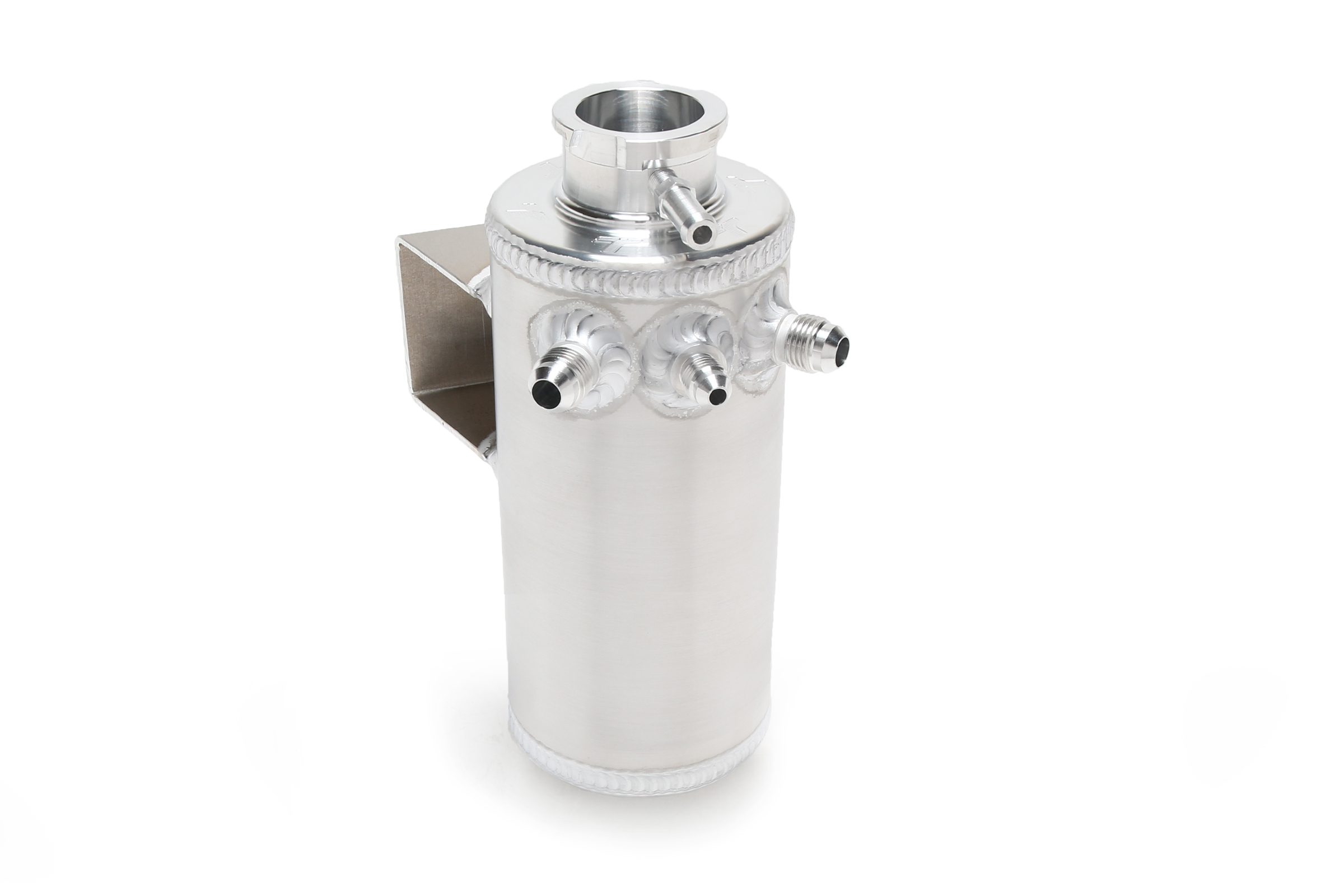

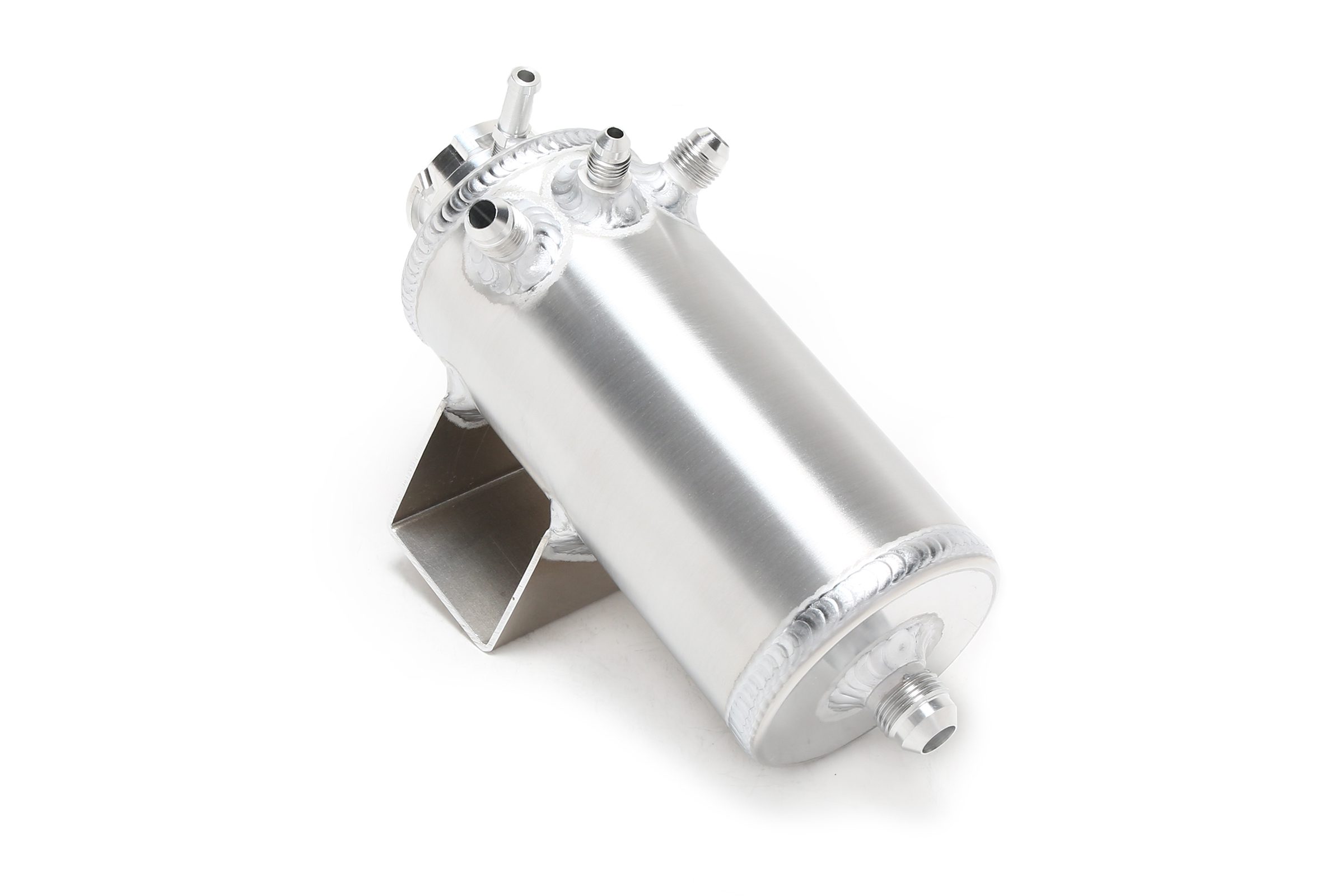

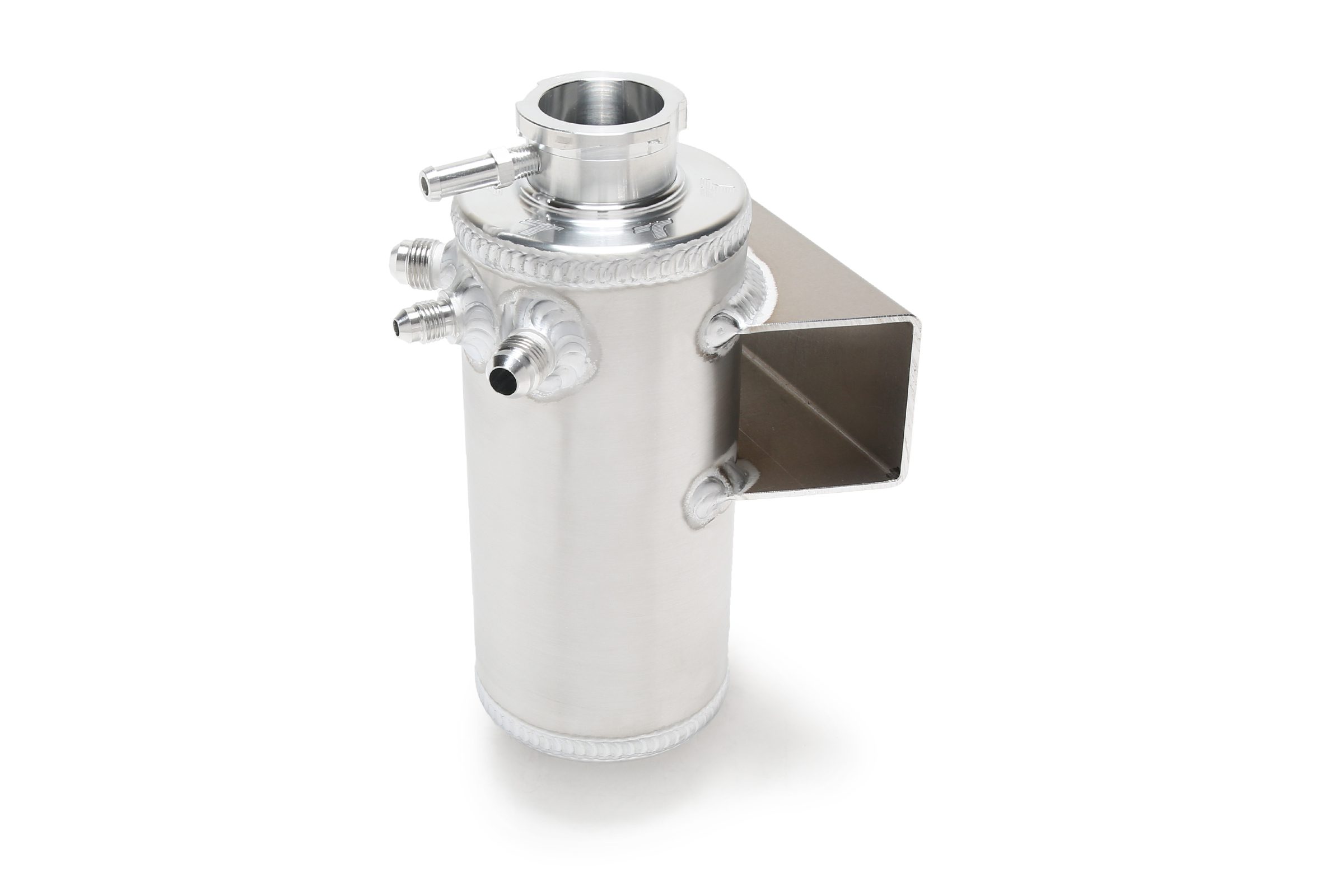

TracTuff Remote Mount Header Tank

$169.95

Fabricated Product

Please refer to the green banner at the top of the page for my current ETA. If needed, you can request the exact date after you have placed your order. I usually ship the same day as the job date.

Tank Diameter
Tank Length
Tank Outlet
Male Inlet
Female Inlet

Description

The Remote Mount Header Tank replaces molded OEM expansion tanks on vehicles swapped with engines that originally had them.

Header tank is the term given to a container that holds a “head” of water for the cooling system. Most modern vehicles have a plastic version of this, but it’s more commonly called an expansion tank; do not confuse this with an overflow. They are two totally different components. Regardless of the name, these tanks provide the same critical functions: a convenient place to fill the cooling system and space for the system to expand.

If you swap an engine from a vehicle that originally had an expansion tank as part of the cooling system, you will notice it was the highest point in the system. The header tank should be as high as possible in the engine bay so the water level in the tank is higher than the radiator and all engine connections. Typically mounted to a firewall, bulkhead, or shock tower, with lines plumbed from all individual cooling system components (radiator, upper water neck, turbo (if equipped)) that could trap air, then fed back to the water pump inlet.

The water pump draws from the header tank, pulling air and water from each connected component and trapping the air at the highest point. Air is then displaced as the system expands or when you manually top it off.

NOTE: You have total control over this project! What is shown is just an example… You can specify the diameter, height, inlet positions, and overflow port clocking. Mounting bracket is NOT INCLUDED. The cap bung has a 1/16″ NPT port for connection to an overflow and uses early-model Honda radiator caps, such as an 88′-91′ Civic/ CRX or 90′-93′ Integra.

Mounting brackets are quoted via email or phone once I have a technical drawing or some way to understand the material and effort involved

Additional information

Weight 3 lbs
Dimensions 14 × 10 × 6 in
