TracTuff J Series Side Exit Water Neck
The J Series engine has been finding its way into a number of rear wheel drive swaps and for those that would rather not have the exit routed through the valley I've come up with this solution.

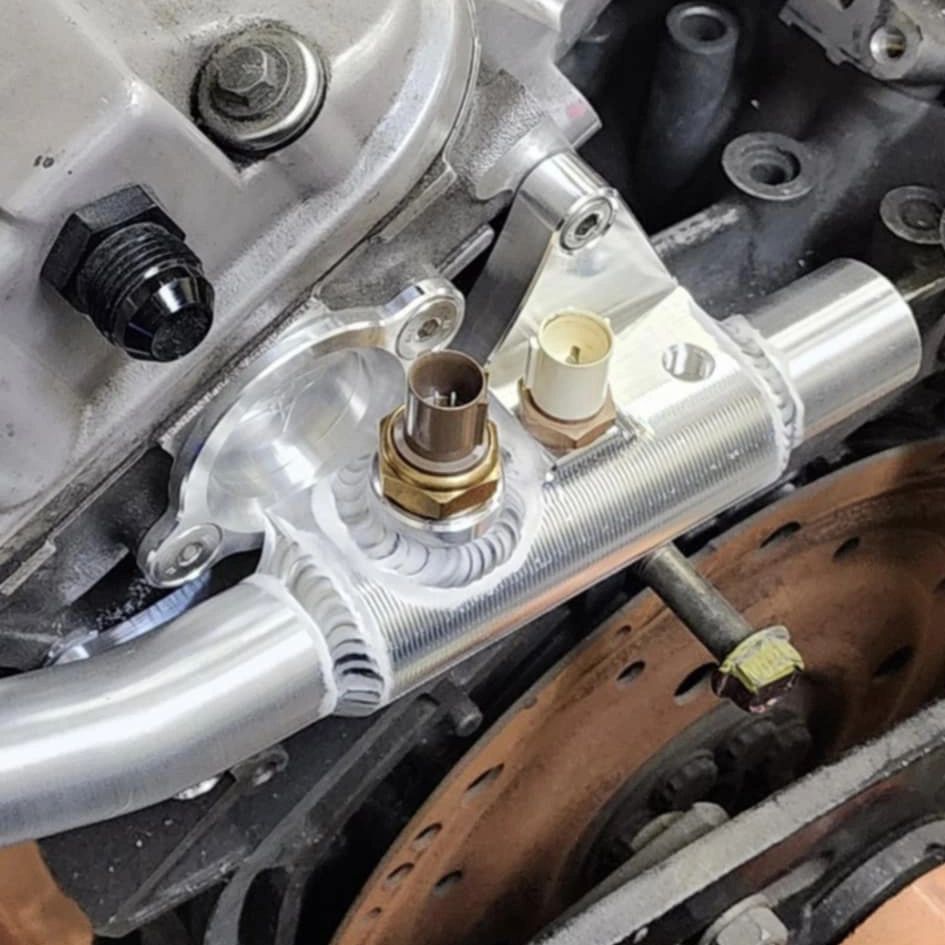

The outlet has a welded section of tube that hugs the cylinder head a close as possible and either turns forward and ends in a -16 male flare or follows along the valve cover, just under the coils and then attaches to the OEM alternator bracket with a billet mount and ends in a bead rolled standard hose connection.
The flanges are by far the most complicated set I have made to date; in order to make the set as compact as possible and still produce something that would move water on a motor that's making more power than it did originally, I had to be mindful of the passages. As much as I didn't want too... for cost reasons, I had to make a low profile camshaft thrust cover, its as thick as the head of the hardware (.1712") that allows the water neck to go over the cover without making the neck taller or going under and creating an air pocket.
The two bolt neck had to be taller to line up with the four bolt neck (due to offset cylinder heads) so the two would line up without a custom molded hose. Further complicating things, the flanges had to have an offset water passage that is slightly higher than the cylinder head outlet ports in order for the flanges to clear the edge of the blocks deck, but it all paid off because the combo only takes up 2.10" of space!
The four bolt flange uses an OEM gasket (included), incorporates an early M12 x 1.5 J Series ECT sensor port, and a 1/8" NPT accessory port. The two bolt flange uses an o-ring (included) to seal against the cylinder head and incorporates a -8 ORB outlet port. A custom -8 ORB to 11/16" hose fitting and plug are included so you can choose whether or not to connect a heater core. Bridging the two flanges is a section of fiber reinforced silicone hose and stainless hose clamps. You have the choice of adding an accessory bung to feed the thermostat water bypass port if you plan on running an inline thermostat.
NOTE: Made to Order - Contact for ETA - If you are interested in a specific design that varies from this, please email us at email@example.com. These unique flanges do not have the means to hold the water pump inlet tube like the V1 flanges so you will need to run the J Series Water Pump Inlet or come up with your own solution. You can see the complete combo in this video.
