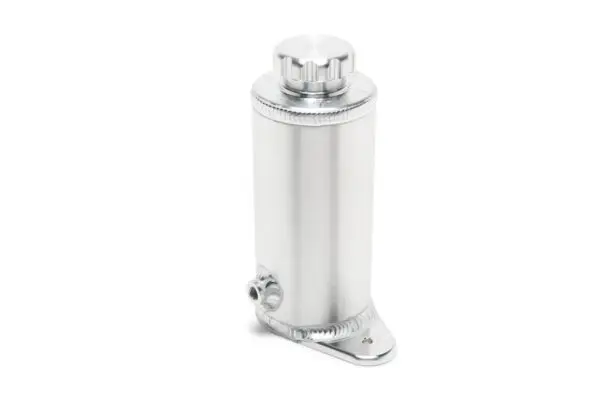

TracTuff Overflow – Universal Horizontal Mount

Description

Looking for a matching overflow to one of my filler necks, fill pots, or swirl pots? Or are you just looking for a clean universal solution for your project?

My newest offering! Using the bolt-down base that was originally designed for the remote mount swirl pot line, and now offering overflows with it. All you need is a flat horizontal surface, an unused M6 thread (can be drilled up to M8), and BAM!

Because the base mounts this assembly, the inlet/ outlet port must be welded to the side. You can call out for either a 1/8″ NPT or -4 male flare port and have me weld it where you want. I will email you a template (shown below) you can use to identify the clocking of the mounting point and connection after you have made your purchase.

NOTE: The tank height you have chosen is just the length/ height of the body. Please add 1.355″ for the billet base, billet lid, and filler cap to get an overall height. It is your responsibility to research the internal volume of your choice.

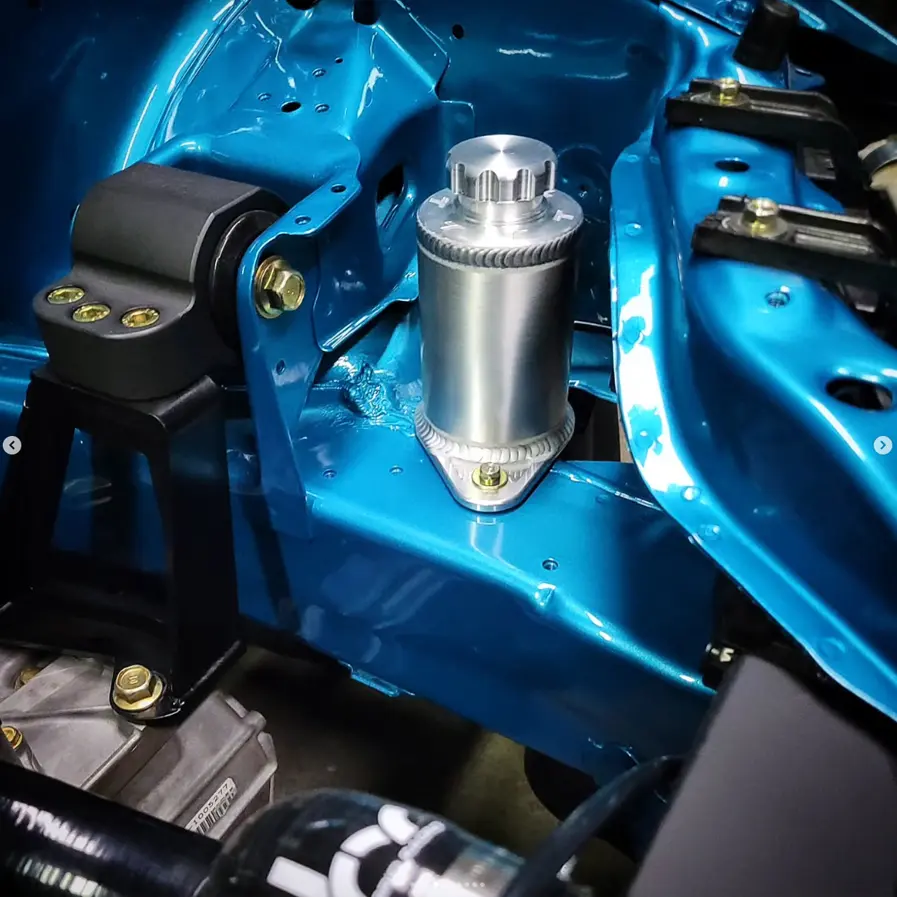

3.00″ x 4.00″ – Photo Courtesy of jay_smithers

After you place your order and sometime prior to the day I will be making your overflow, I will send an email asking you to tell me where you want the overflow connection welded in relation to the M6 mounting hole, as well as the position of the fluid level sight, if you selected it.
