Radium Fuel Pressure Gauge

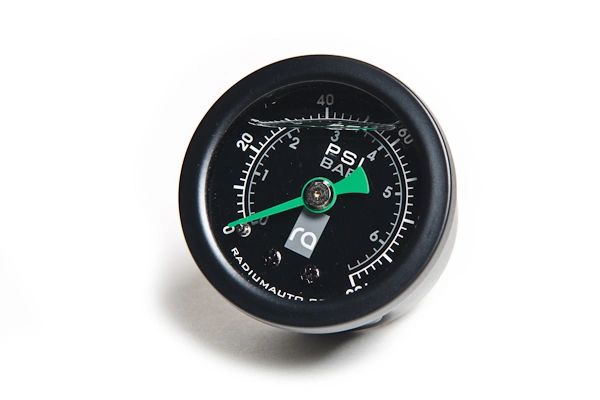

This high-accuracy fuel pressure gauge is suitable for all fueling applications. It features an acrylic lens with a silicone filled dial that reads from 0 to 100psi (0 to 6.9 BAR) with +/- 2% accuracy. The silicone fluid prevents the needle from vibrating for easy pressure readings. Rugged stainless steel 1-5/8" OD case (1-3/4" OD bezel) with nickel plated male 1/8" NPT fitting.

NOTES: The internal silicone bubble is normal. Over pressurizing can permanently misalign the needle calibration. PTFE thread sealant paste should always be used on NPT threads.
