TracTuff Remote XL Oil Filter Mount

Remote Oil Filter Mounts are on Back Order as of 12/4/24. The ETA is about 3 weeks. Back Orders will ship as soon as they are back in stock and Tracking emails will automatically be sent when I print the labels.

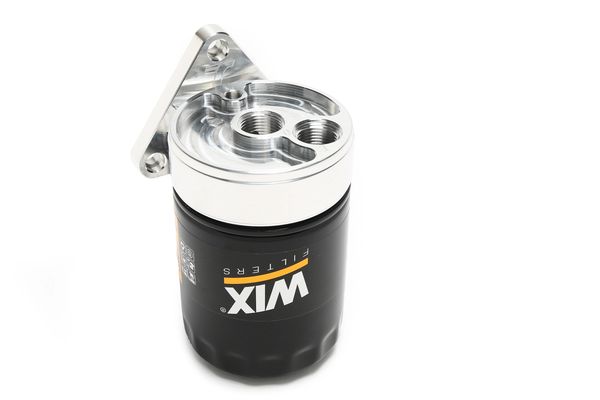

The TracTuff XL Remote Oil Filter Mount is a universal product designed to relocate the oil filter to a more convenient location.

This version of the remote oil filter mount has been manually machined to remove the feature that allowed the assembly to be mounted upside-down. Additional pocketing has been machined into the mount to aid in oil getting to the filter element and the metric filter mounting stud has been ditched for a stainless steel 13/16"-16 unit that will allow the use of several popular large race style filters.

You can choose from several quality oil filter options that use a 13/16"-16 thread, like the WIX 51069 or 51069R filter or any filter that has a gasket that falls inside 2.875" (ID) to 3.50" (OD).

The oil filter mount has machined “IN” & “OUT” markings and accepts -10 ORB fittings. The mounts also has a filtered 1/8" NPT accessory port to add a sensor or supply clean oil to an accessory. The hardware kit includes 1/8" NPT plugs and stainless steel mounting bracket to filter mount hardware.

NOTE: If you don't already have an adapter to get the oil from the original filter location to your new remote mount location... I have equally well thought out solution, please be sure to check it out. If you are choosing NOT to buy the port fittings... please be sure to purchase fittings that have max hex size of 1.15" or they wont work or will need to be turned down. I also highly suggest the use of a one-way check-valve on the plumbing of the line feeding this product with oil, as close to the source as possible.

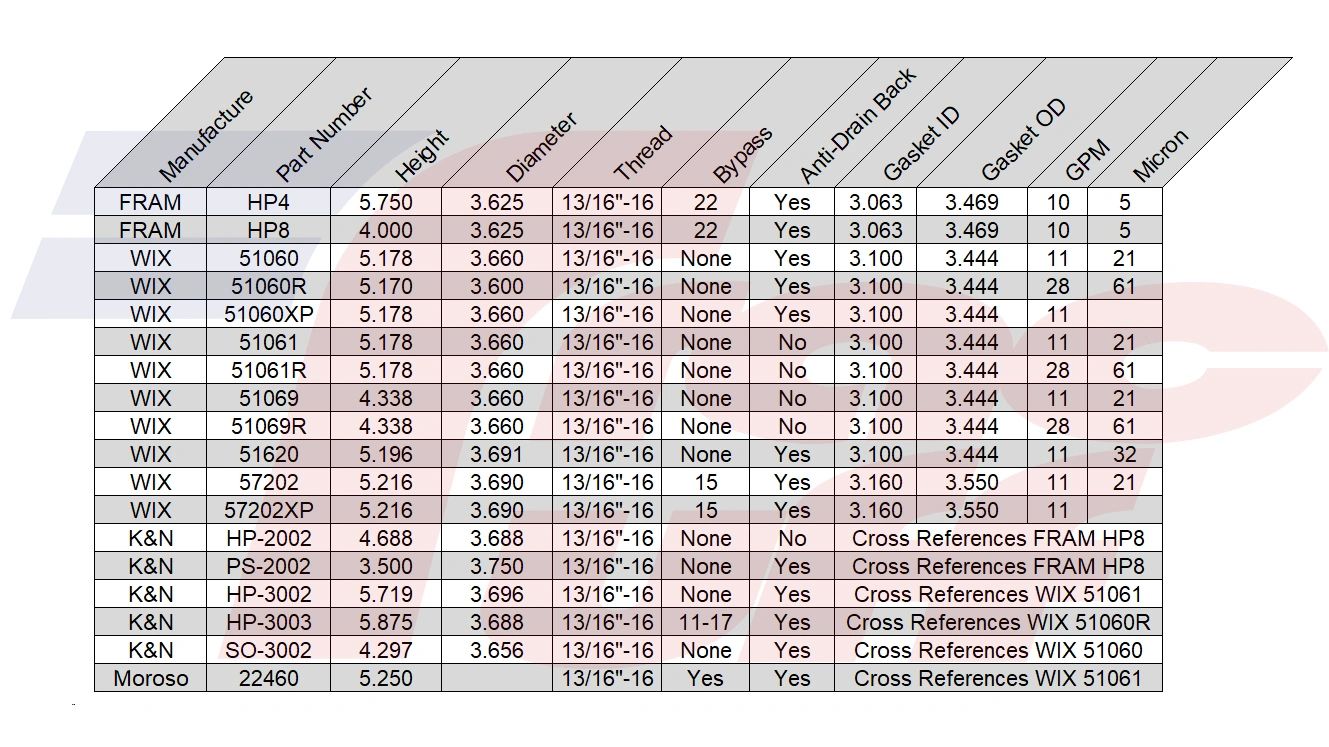

Oil Filter Compatibility List
