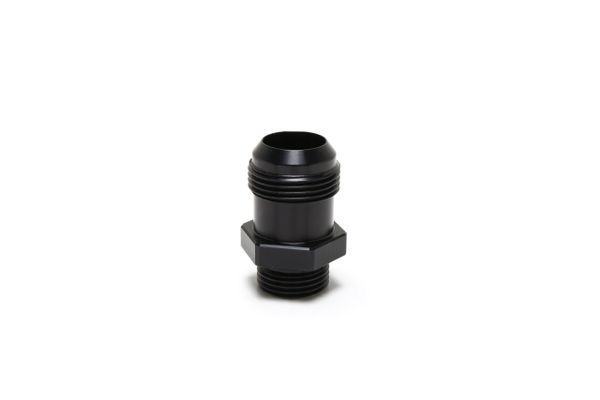

Straight -12 ORB to -16 Male Flare Fitting - XL


ORB stands for "O-Ring-Boss" which is an SAE straight cut thread that seals by the use of an o-ring. The opposite end of the ORB fitting is a 37° JIC flare and seals via a matching 37° seat on the hose-end. No thread sealant is necessary or recommended with these fittings.

This particular fitting is .40" longer than my traditional -12 ORB to -16 male flare fittings and was designed to get proper hose alignment when using the TracTuff WP136S Electric Water Pump Mount on K24A/A2/A4/A8 blocks.

Thread Sizes

  • -16 > 1-5/16"-12 SAE
  • -12 > 1-1/16"-12 SAE
  • -10 > 7/8"-14 SAE
  • -8 > 3/4"-16 SAE
