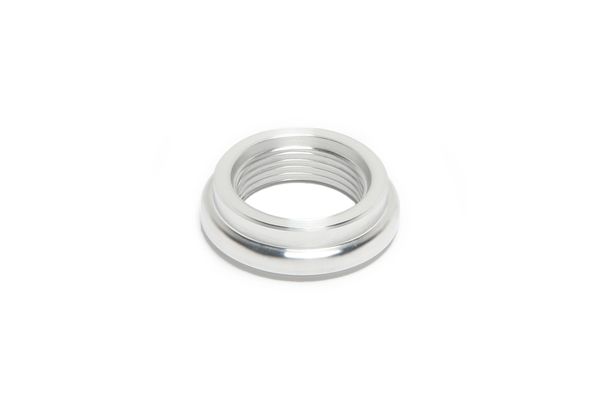

TracTuff -16 Female ORB Bung
TracTuff -16 Female ORB Bung.
The weld bung has been designed with the popular -16 ORB (1-5/16"-12 SAE) thread and o-ring seat. The backside incorporates a small 1.85" step that helps locate it in .060" wall 2.00" tube or flat sheet with at least 2.25" square.
NOTE: The weld bung measures 2.00" x .500" and has CNC machined -16 ORB (1-5/16"-12 SAE) thread and o-ring seat. The backside incorporates a small 1.85" diameter step that helps locate it in .060" wall 2.00" tube or flat sheet. The 1.85" register can be turned down to 1.50" diameter with a .125" tall step to minimize the size of hole you need to make in a flat panel as well as make it easier to weld from the backside. If you don't care about the register at all... you only need a 1.25" hole.
