TracTuff Overflow - App Specific Mount
Looking for an application specific matching overflow? We've got you!

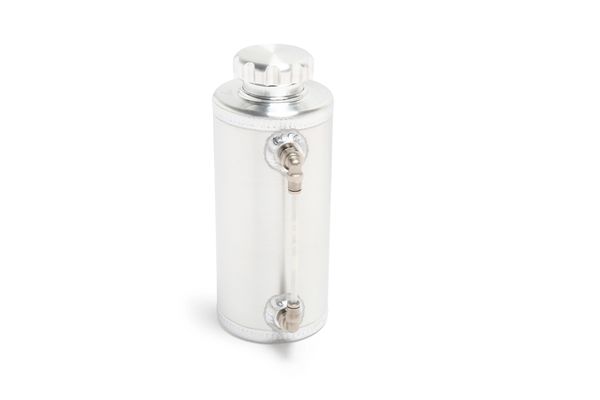

Custom machined billet tank brackets make it a snap to replace your old dingy plastic reservoir with our slick, matching overflow. A nice finishing touch to our filler necks, fill pots, and swirl pots... the overflow slides into several golden era OEM reservoir brackets (shown below). The overflow incorporates a clean vented filler cap and your choice of connection.
NOTE: I do not recommend choosing anything taller than 6.00" for the EG/ EK/ DC2 Power Steering bracket or the EF and DC2 Overflow bracket, unless the overflow is mounted over the edge of the frame (not possible with the EG/ EK/ DC2 Power Steering bracket), where the cylinder extends below the mounting surface.
The inlet/ outlet port options listed need to be selected based on how you plan on mounting the overflow. Understand that if you are using the OEM EG/ EK/ DC2 Power Steering and the DC2/ RD1/ RD2 overflow brackets, and you choose the inlet/ outlet port to be on the base, you will need to account for the fitting (assuming the overflow is being mounted over a flat surface). If you choose the inlet/ outlet port to be on the base... I will thread a 90° fitting in and weld the bracket just above that height. Understand that this WILL increase the installed height.
The tank height you have chosen is just the length/ height of the body, please add 1.355" for the billet base, billet lid, and filler cap to get an overall height.
The billet brackets that make it possible to slide a fabricated overflow into the OEM steel overflow/ power steering bracket comes in two sizes. The applications listed are the only brackets I have personally confirmed to work. Honda/ Acura have made MANY different sizes over the years... they may look similar but are not the same. There may be other OEM brackets out there that will accept my billet brackets but I cannot confirm. Please do your own due diligence before assuming! Or simply buy and use one of the brackets listed, even if you don't own the application it came from, some can be used universally.

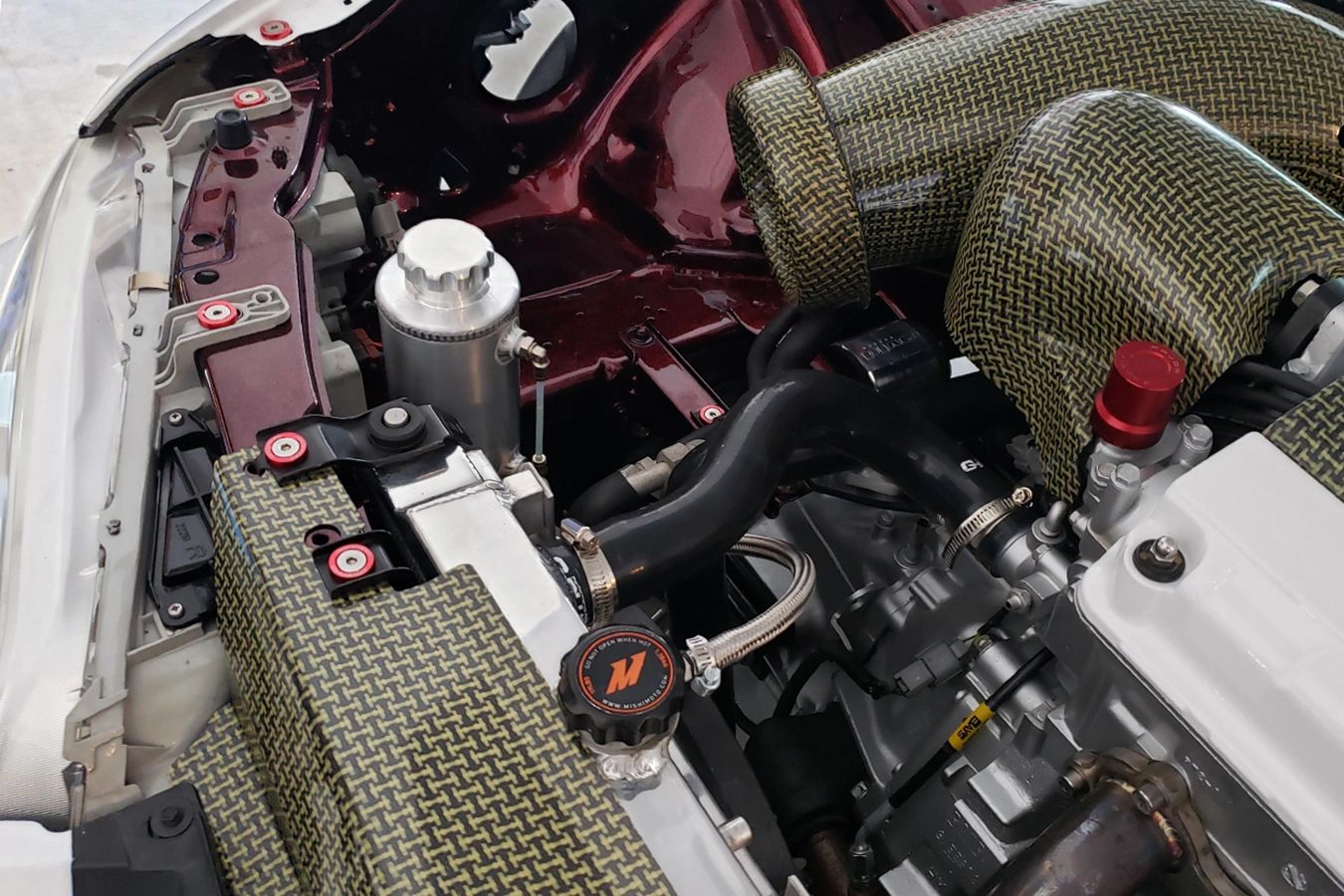

Photo Courtesy of Justin Chokov
Here are a few examples of the OEM brackets that my billet brackets are compatible with. Again, there may be other OEM brackets out there that will accept my billet bracket but I cannot confirm. Please do your own due diligence before assuming! Or simply buy and use one of the brackets listed, even if you don't own the application it came from, some can be used universally.
EG/ EK/ DC2 Power Steering - Flat Horizontal Mounting Surface
DC2 Overflow (RD1/ RD2 is very similar) - Flat Horizontal Mounting Surface
EK Coolant Overflow (EG is very similar) - Specific Mounting Surface
