TracTuff P13 Swirl Pot

$322.95

Engine Angle

Connection Type

Outlet Position

Tank Accessory Bung

QTY

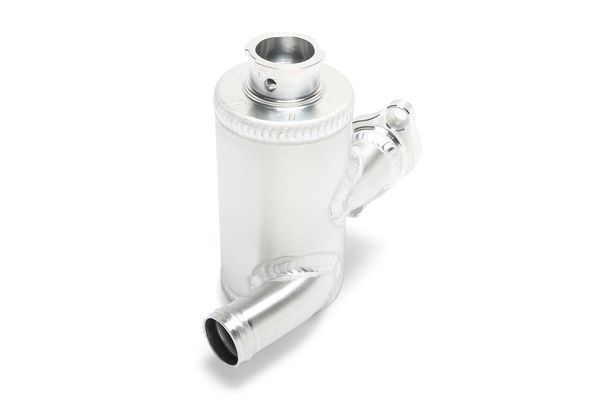

The swirl pot is the top choice for P13 (H22/ H23/ F20B/ F22A/ F23A) cylinder head cooling system upgrades! Best solution for systems that have tucked radiators, a radiator without a cap bung or for situations where you want a higher fill point to aid in burping the sometimes troublesome cooling system.

The swirl pot starts with a beautifully machined 6061-T6 flange that incorporates incorporates a 3D tapered exit port for a seamless transition to 1.25" tubing. The backside of the flange has an OEM o-ring grove for a positive seal against the cylinder head. The outlet can be configured for standard hose (1.25" OD), -16, or -20 male flare.

NOTE: Made to Order - Contact for ETA - If you are interested in a specific design that varies from this, please email us at sales@tractuff.com. The cap bung has a 1/16" NPT port for connection to an overflow and uses early model Honda radiator caps; such as an 88'-91' Civic/ CRX or 90'-93' Integra. If you are using AN lines, I recommend designing the upper radiator hose so that there is droop/ give... so the engines movement and does not push/ pull on the radiator and fatigue any parts.

The swirl pot includes two stainless M8 socket head bolts and an o-ring. The cylinder is welded so that it sits level when bolted to an engine with a 10.5° lean back (traditional) or 4.2° lean forward (QSD H2B).
