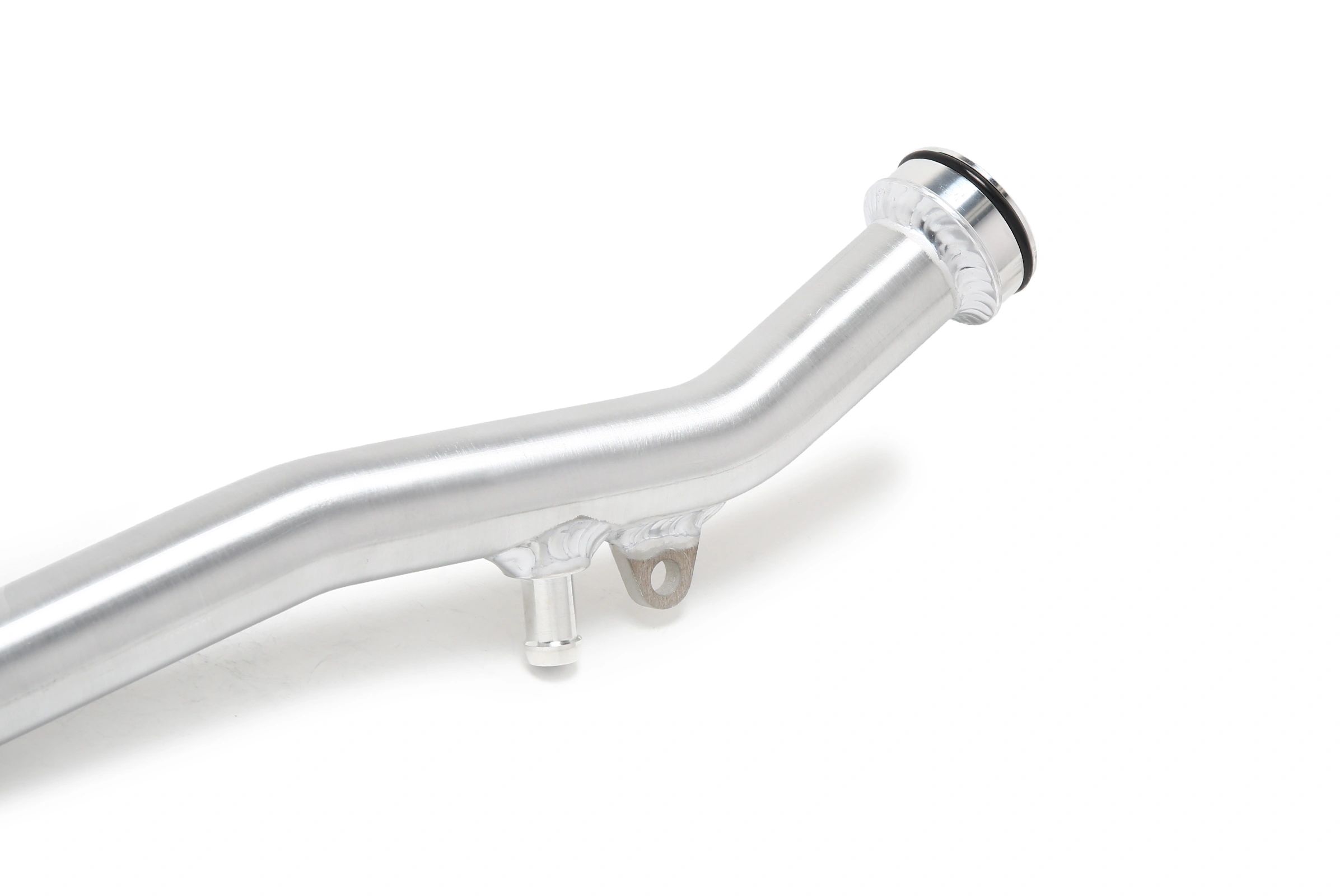

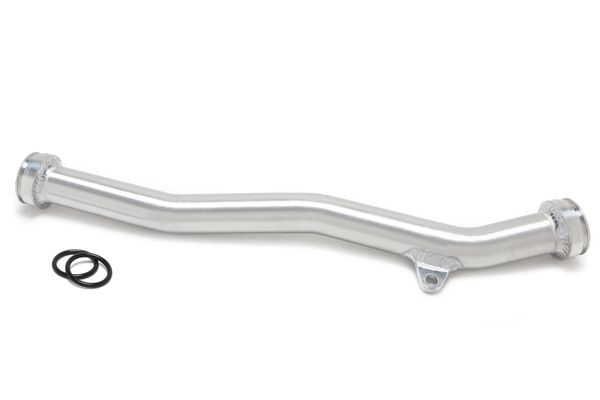

TracTuff H Series Water Pipe

TracTuff H Series Water Pipes are on Back Order as of 4/17/24. ETA is unknown... so please do not inquire (you'll get no different answer). I will update this page with an ETA when an ETA is provided by the tube bender. You are welcome to order now and take advantage of the small discount and I will email you with an ETA so you don't have to check back. Back Orders will ship automatically when they are back in stock.

The H Series Water Pipe will work with either the TracTuff H Series Thermostat Housing Delete or the OEM thermostat housing. You have options to add nipples to return water from the H22 oil cooler and/ or the vehicles heater core.

NOTE: Made to Order - Please allow 10-14 days for this product to ship - There are a few additional things you need to understand. The mounting tab is NOT necessary at all... but the community asked for it so I will continue to offer it. If you would like to understand why, please watch this.

Also, the water pipe was NEVER the feed to the heater core or the oil cooler, it has always been the return. By converting to an electric water pump and placing the pump down stream will result in everything in-between the pump and block as a feed. That's right, pressure... not suction.

Again, the ONLY way the nipples on the pipe work the way they were designed, is to keep the OEM pump and thermostat in place. The closed thermostat creates a low pressure zone, which in turn allows the pump to suck fluid through anything connected to it. DO NOT add nipples to the pipe if you have converted to an electric pump, unless you want to send water to something. If you need a return... it now needs to go to the inlet of the new water pump to complete a coolant loop.

The heater core nipple on our OEM sample measures roughly 17mm (.6692") which is slightly larger than 5/8" (.6250") but smaller than 3/4" (.7500"). I recommend you measure your connections for either bung option just in case there are variations from the factory.
