TracTuff Fan Shroud

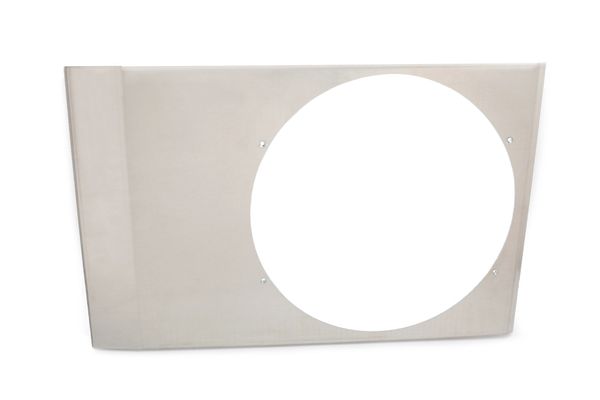

TracTuff Single Fan Fan Shrouds work with the EG, EK, and DC2 TracTuff custom radiators and coincidentally... the Koyo K swap radiator!
I offer several custom radiators for a variety of applications but my three most popular applications produce two radiators that use either 24.5” x 15.75" and a 14" SPAL fan or 24.500” x 14.1250” and a 13" SPAL fan. If you are using a different brand of fan, be prepared to make new holes and add your own rivnuts or pem nuts.
Depending on application or preference you can choose to have the fan moved to one end of the core or the other... or have it centered. The fan shroud ADDS depth to your radiator... it is your responsibility to verify you have the space. The shroud stands off of the radiator by 13/16" as measured from the red lines shown below. I recommend radiators be mounted on OEM mounting points or using ASR's Billet Lower Radiator Brackets when OEM mounting points don't work. The ASR product offers the best clearance by keeping the radiator closest to the core support. I recommend the S-30102044 and S-30102042 because the move real air and they are the largest of their respective sizes as a result. You can order slim line fan on your own if you don't believe you need the air flow I recommend.
The Koyo K Swap radiator uses the 24.5” x 15.75" variant. The shroud may also work for other radiators as long as it has the same space for the shroud to sit (see below). I plan to order a B series full size Koyo Integra radiator to see if either dimension will work. For the time being... purchase at your own risk.
NOTE: Pease allow 7-10 working days for product to ship. If you are interested in a custom fan shroud (different overall dimensions, different fan or fan combo, send an email to sales@tractuff.com. Contact SPAL for mounting info related to fans I don't list. M6 x 1.00 mounting nuts are pressed in but you will be responsible for mounting bolts.
The fan mounting tab option is necessary for those that cannot weld on their own. I only make it an option for those wanting to buy the shroud as a universal product and cannot instruct me where to weld the tabs.

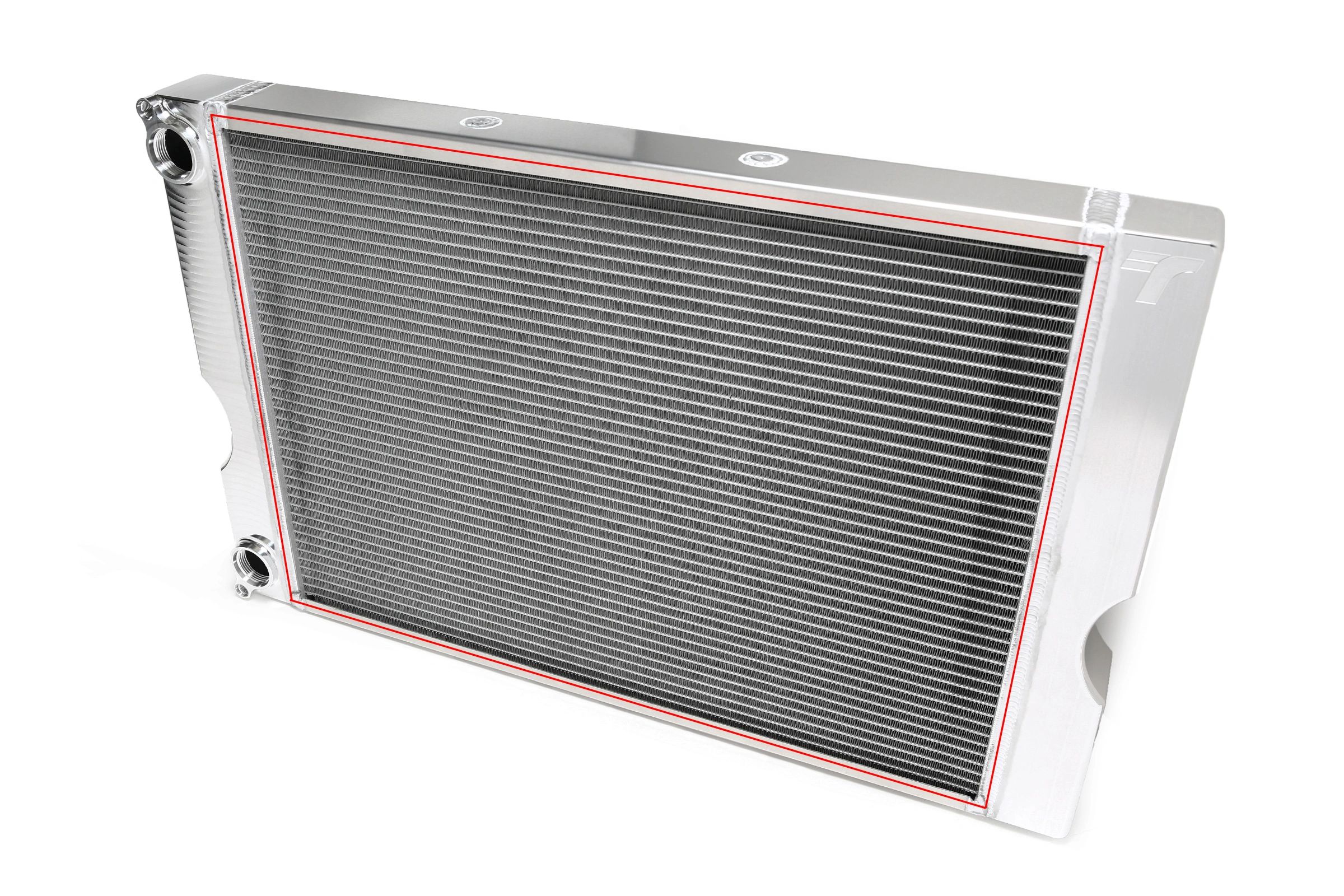

The red line shown below is a general outline of where the shroud was meant to sit. Measure your radiator to determine if one of the two initial offerings will work. Due to each radiators unique construction and placement of accessory mounting points (if there are any) I will not be welding mounting tabs for any radiator I do not offer. I will include the include them loose and oversized so you can cut, bent, and welded as needed.
